Descrizione

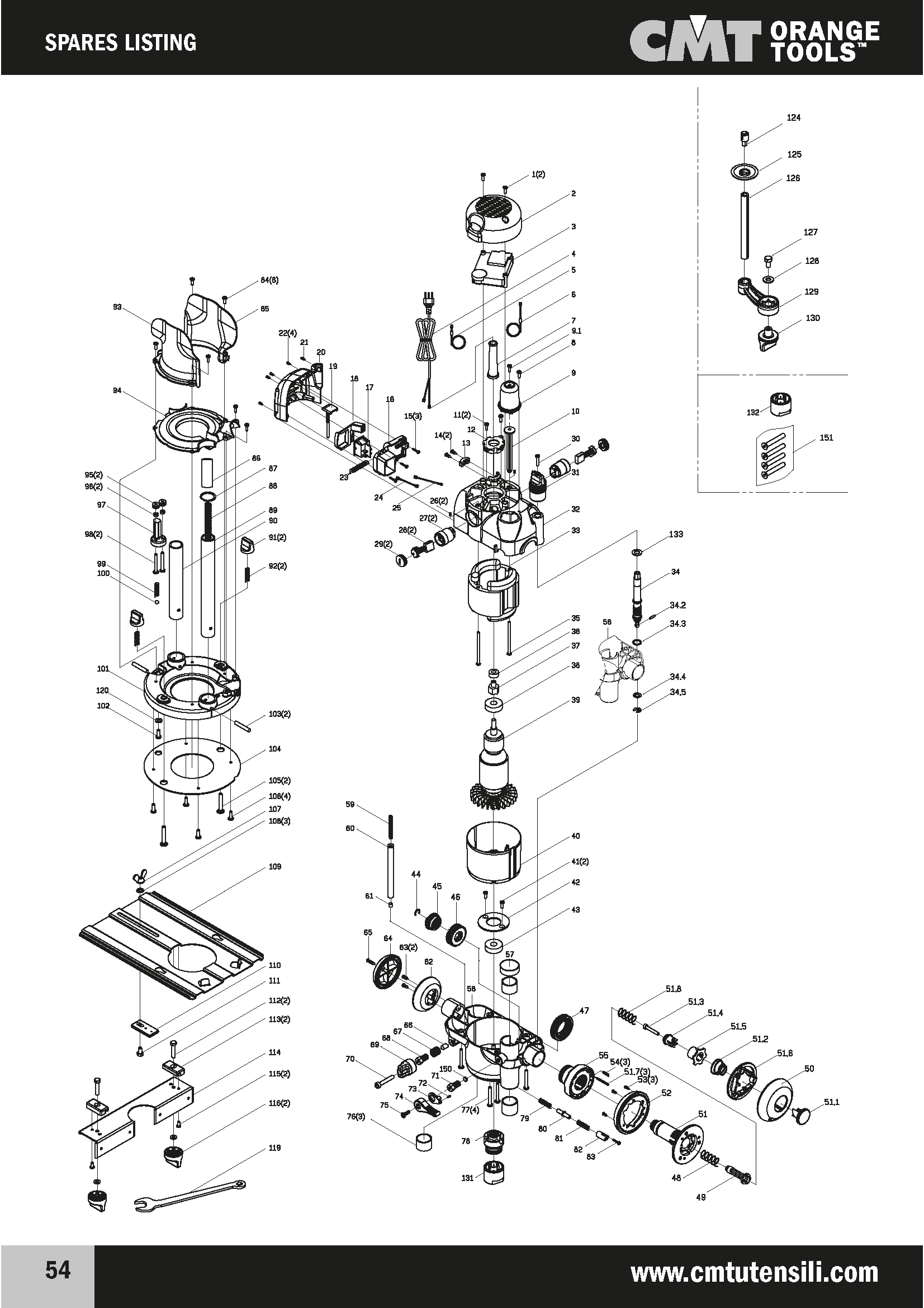

TUTTE LE PARTI DI RICAMBIO PER LA CMT7E DISPONIBILI SU RICHIESTA (VEDERE L’IMMAGINE PER IL RIFERIMENTO DELLE PARTI ELENCATE DI SEGUITO)
Per effettuare l’ordine e verificare l’effettiva disponibilità contattarci al numero 3284896887 anche su WhatsApp, o tramite mail a info@tooltarget.com o assistenza@tooltarget.com

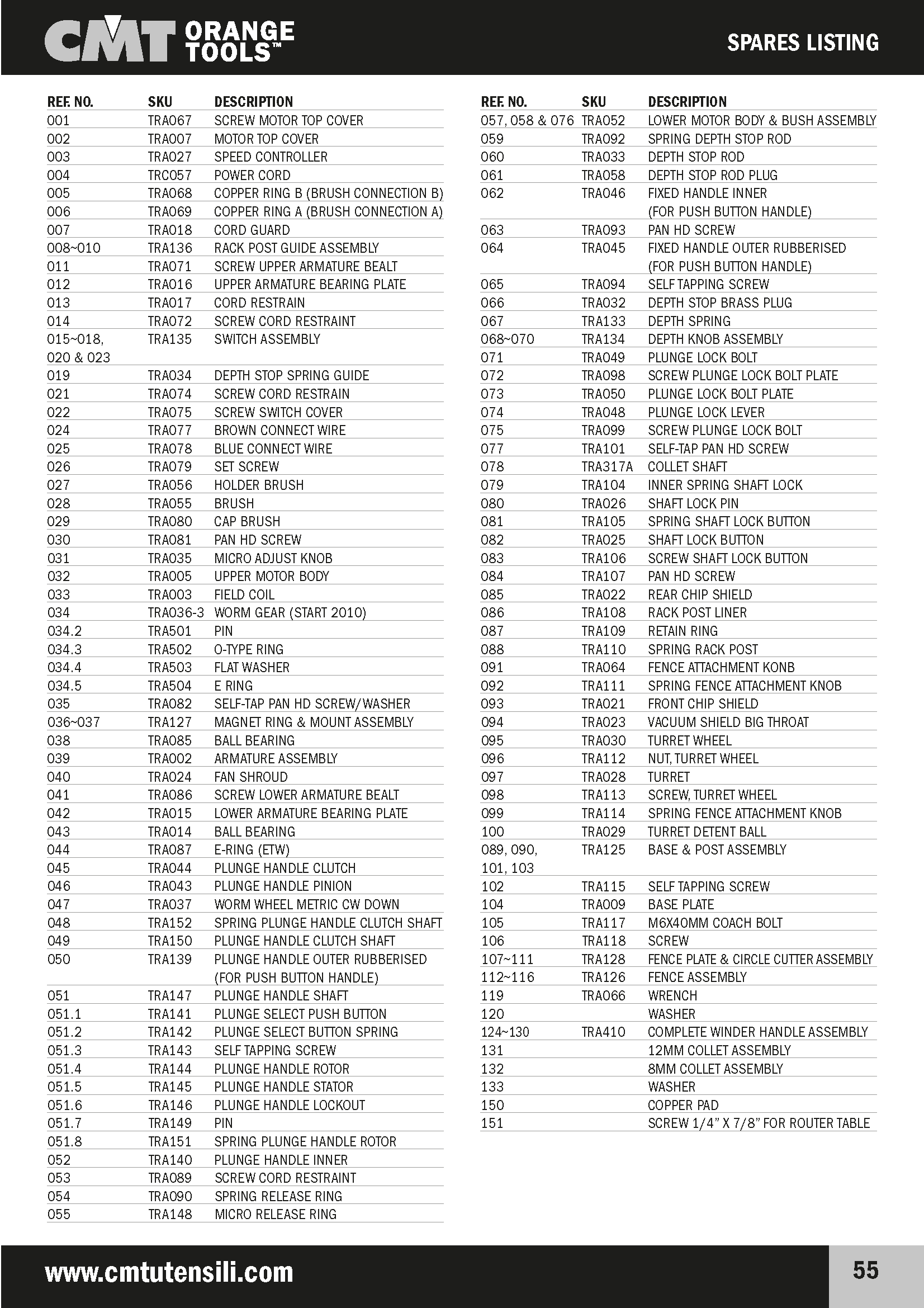

REF. NO. SKU DESCRIPTION
001 TRA067 SCREW MOTOR TOP COVER
002 TRA007 MOTOR TOP COVER
003 TRA027 SPEED CONTROLLER
004 TRC057 POWER CORD
005 TRA068 COPPER RING B (BRUSH CONNECTION B)
006 TRA069 COPPER RING A (BRUSH CONNECTION A)
007 TRA018 CORD GUARD
008~010 TRA136 RACK POST GUIDE ASSEMBLY
011 TRA071 SCREW UPPER ARMATURE BEALT
012 TRA016 UPPER ARMATURE BEARING PLATE
013 TRA017 CORD RESTRAIN
014 TRA072 SCREW CORD RESTRAINT
015~018, TRA135 SWITCH ASSEMBLY
020 & 023
019 TRA034 DEPTH STOP SPRING GUIDE
021 TRA074 SCREW CORD RESTRAIN
022 TRA075 SCREW SWITCH COVER
024 TRA077 BROWN CONNECT WIRE
025 TRA078 BLUE CONNECT WIRE
026 TRA079 SET SCREW
027 TRA056 HOLDER BRUSH
028 TRA055 BRUSH
029 TRA080 CAP BRUSH
030 TRA081 PAN HD SCREW
031 TRA035 MICRO ADJUST KNOB
032 TRA005 UPPER MOTOR BODY
033 TRA003 FIELD COIL
034 TRA036-3 WORM GEAR (START 2010)
034.2 TRA501 PIN
034.3 TRA502 O-TYPE RING
034.4 TRA503 FLAT WASHER
034.5 TRA504 E RING
035 TRA082 SELF-TAP PAN HD SCREW/WASHER
036~037 TRA127 MAGNET RING & MOUNT ASSEMBLY
038 TRA085 BALL BEARING
039 TRA002 ARMATURE ASSEMBLY
040 TRA024 FAN SHROUD
041 TRA086 SCREW LOWER ARMATURE BEALT
042 TRA015 LOWER ARMATURE BEARING PLATE
043 TRA014 BALL BEARING
044 TRA087 E-RING (ETW)
045 TRA044 PLUNGE HANDLE CLUTCH
046 TRA043 PLUNGE HANDLE PINION
047 TRA037 WORM WHEEL METRIC CW DOWN
048 TRA152 SPRING PLUNGE HANDLE CLUTCH SHAFT
049 TRA150 PLUNGE HANDLE CLUTCH SHAFT
050 TRA139 PLUNGE HANDLE OUTER RUBBERISED
(FOR PUSH BUTTON HANDLE)
051 TRA147 PLUNGE HANDLE SHAFT
051.1 TRA141 PLUNGE SELECT PUSH BUTTON
051.2 TRA142 PLUNGE SELECT BUTTON SPRING
051.3 TRA143 SELF TAPPING SCREW
051.4 TRA144 PLUNGE HANDLE ROTOR
051.5 TRA145 PLUNGE HANDLE STATOR
051.6 TRA146 PLUNGE HANDLE LOCKOUT
051.7 TRA149 PIN
051.8 TRA151 SPRING PLUNGE HANDLE ROTOR
052 TRA140 PLUNGE HANDLE INNER
053 TRA089 SCREW CORD RESTRAINT
054 TRA090 SPRING RELEASE RING
055 TRA148 MICRO RELEASE RING
REF. NO. SKU DESCRIPTION
057, 058 & 076 TRA052 LOWER MOTOR BODY & BUSH ASSEMBLY
059 TRA092 SPRING DEPTH STOP ROD
060 TRA033 DEPTH STOP ROD
061 TRA058 DEPTH STOP ROD PLUG
062 TRA046 FIXED HANDLE INNER
(FOR PUSH BUTTON HANDLE)
063 TRA093 PAN HD SCREW
064 TRA045 FIXED HANDLE OUTER RUBBERISED
(FOR PUSH BUTTON HANDLE)
065 TRA094 SELF TAPPING SCREW
066 TRA032 DEPTH STOP BRASS PLUG
067 TRA133 DEPTH SPRING
068~070 TRA134 DEPTH KNOB ASSEMBLY
071 TRA049 PLUNGE LOCK BOLT
072 TRA098 SCREW PLUNGE LOCK BOLT PLATE
073 TRA050 PLUNGE LOCK BOLT PLATE
074 TRA048 PLUNGE LOCK LEVER
075 TRA099 SCREW PLUNGE LOCK BOLT
077 TRA101 SELF-TAP PAN HD SCREW
078 TRA317A COLLET SHAFT
079 TRA104 INNER SPRING SHAFT LOCK
080 TRA026 SHAFT LOCK PIN
081 TRA105 SPRING SHAFT LOCK BUTTON
082 TRA025 SHAFT LOCK BUTTON
083 TRA106 SCREW SHAFT LOCK BUTTON
084 TRA107 PAN HD SCREW
085 TRA022 REAR CHIP SHIELD
086 TRA108 RACK POST LINER
087 TRA109 RETAIN RING
088 TRA110 SPRING RACK POST
091 TRA064 FENCE ATTACHMENT KONB
092 TRA111 SPRING FENCE ATTACHMENT KNOB
093 TRA021 FRONT CHIP SHIELD
094 TRA023 VACUUM SHIELD BIG THROAT
095 TRA030 TURRET WHEEL
096 TRA112 NUT, TURRET WHEEL
097 TRA028 TURRET
098 TRA113 SCREW, TURRET WHEEL
099 TRA114 SPRING FENCE ATTACHMENT KNOB
100 TRA029 TURRET DETENT BALL
089, 090, TRA125 BASE & POST ASSEMBLY
101, 103
102 TRA115 SELF TAPPING SCREW
104 TRA009 BASE PLATE
105 TRA117 M6X40MM COACH BOLT
106 TRA118 SCREW
107~111 TRA128 FENCE PLATE & CIRCLE CUTTER ASSEMBLY
112~116 TRA126 FENCE ASSEMBLY
119 TRA066 WRENCH
120 WASHER
124~130 TRA410 COMPLETE WINDER HANDLE ASSEMBLY
131 12MM COLLET ASSEMBLY
132 8MM COLLET ASSEMBLY
133 WASHER
150 COPPER PAD
151 SCREW 1/4” X 7/8” FOR ROUTER TABLE
